Electronic Locks |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Signature RFID |
|

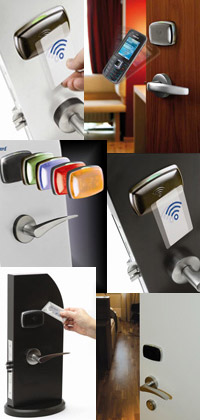

Description : Signature RFID by VingCard – Get MORE with ContactLess
Radio Frequency IDentification (RFID) unlocks today the future technology in electronic locking systems for hotels.
Signature RFID electronic locks by VingCard offers the latest Radio Frequency IDentification (RFID) technology with the most flexible platform for future applications. |
Benefits :
-
More Guest Satisfaction: Unmatched ease of use for guest of all ages. No
need to insert the keycard, more intuitive.
- More Security: Anti-cloning technology for all guest and staff cards.
Mag-stripe keycards can be cloned. Signature RFID allows powerful
anti-cloning solution.
- More Adaptability: RFID carriers adapt to any hotel style: Business, Resort,
Spa, All-inclusive....
- More Selection: Provides access today to next generation technologies,
including NFC-cell phone
- And Less guess-work out of selecting the right technology standard for
your RFID electronic lock. Signature RFID offers you 4 technology
standards in 1 electronic lock: ISO 14.443 A (MIFARE), ISO 14.443 B, ISO
15.693 and NFC-compatible |
RFID Specifications :
-
13,56MHz technology
- Compatible with the following standards:
- ISO 14.443A (MIFARE)
- ISO 14.443B
- ISO 15.693
- Compatible with Near Field Communication (NFC) standards
|
|
|
|
 |
|
Classic RFID |
|
Description : Classic RFID by VingCard offers the latest Radio Frequency Identification (RFID) technology and the quickest path to go contactless if you already have a standard Classic by VingCard electronic lock.
Classic RFID electronic hotel lock is equipped with the most flexible platform for future applications today. |
Benefits :
-
More Guest Satisfaction: Unmatched ease of use for guest of all ages. No
need to insert the keycard, more intuitive.
- More Security: Anti-cloning technology for all guest and staff cards. Mag-
stripe keycards can be cloned. Signature RFID allows powerful anti-
cloning solution.
- More Adaptability: RFID carriers adapt to any hotel style: Business, Resort,
Spa, All-inclusive....
- More Selection: Provides access today to next generation technologies,
including NFC-cell phone
- And Less guess-work out of selecting the right technology standard for
your RFID electronic lock. Classic RFID offers you 4 technology standards
in 1 electronic lock: ISO 14.443 A (MIFARE), ISO 14.443 B, ISO 15.693 and
NFC-compatible. |
Features :
-
Standalone electronic lock with RFID technology.
- Fire listed for usage on fire doors. (UL, EN, BS).
- High security mortise lockcase available in ANSI, JPN, AUS and EURO
versions.
- CE, FCC approved.
- Solid brass handle with self lubricating long life bearings.
- 3-point steel latch construction with an antifriction mechanism.
- Case hardened full 1-inch (ANSI) throw deadbolt.
- Panic release function – the deadbolt and latch are automatically retracted
by inside handle for easy regress in emergency situations.
- ADA compliant (guests with physical disabilities).
- Future proof re-programmable FLASH RAM lock memory.
- Powered by 3AA batteries that provide up to 3 years normal life time.
600
event audit trail.
- Compatible with VISION system software platforms.
- Optional high security mechanical override.
- Upgrade kit from Classic by VingCard (both 4.5V and 9V) magnetic stripe
or combo technology reader to RFID technology:
Only need to add the
RFID reader by replacing the top end plug. A few minutes operation and no
need to replace the lockcase or handles. |
RFID Specifications :
-
13,56MHz technology
- Compatible with the following standards:
- ISO 14.443A (MIFARE)
- ISO 14.443B
- ISO 15.693
- Compatible with Near Field Communication (NFC) standards
|
|
|
|
|
|
