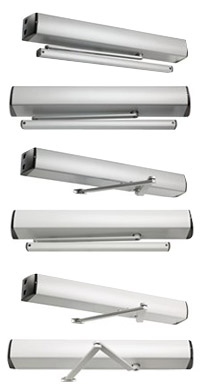

DA430 Swing door operator for interior doors |
|
Description :
DA430 is electromechanical swing door operator for interior doors, developed to ease the access through many kinds on interior doors e.g. in day to surroundings in which silence is required.
ABLOY DA430 can be used with DC190 standard arm (closig side only) and DC194 sliding arm for opening and closing side.
|
Features :
- Narrow design
- Quiet operation
- "Push & go" function as standard
- Quick and easy installation and commissioning
- Power supply 110-230VAC, 50Hz
- Operation temperature 0...40°C
|
|
|
|
 |
|

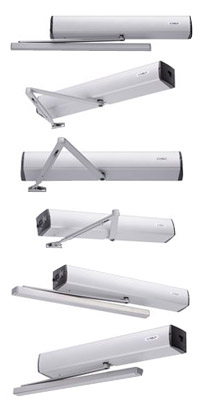

DA460 Swing door operator |
|
Description :
DA460 is electromechanical swing door operator and it is suitable for a wide variety of applications, thanks to its comprehensive programming options.
The door operator includes free swing function: when using the door manually it operates lightly without resistance and the door can be left in open position.
ABLOY DA460 can be installed with DA147 standard arm on closing side or with DA149 sliding arm on opening or closing side.
|
Features :
-
Narrow design
- "Push & go" function as standard option
- Programmable "free swing function" as standard option
- Fire detector assembly option
- Quick and easy installation and commissioning
- Two impulse inputs, normal and delayed impulse, for double door
installation
- Power supply 90-264VAC, 47-63Hz
Operating temperature: -15...+50°C
|
|
|
|
 |
|

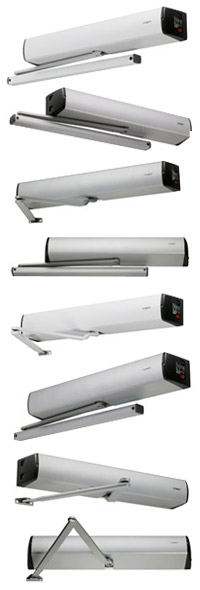

DA461 Swing door operator |
|
Description :
DA461 is electromechanical swing door operator with a built-in door closer that closes the door silently.
DA461 is especially suited to fire doors.
Closing side installation with DA147 standard arm (push fuction).
Sliding arm DA149 can be used on opening and closing side.
|
Features :
-
Adjustable closing force EN size 3-6 according to EN1154
- Programmable "Push & go" fuction
-
Quick and easy installation and commissioning
- Maximum door weight 125 kg and door width 1000 mm
Power supply
100/230VAC, 50/60Hz
- Operation temperature -15°C... +50°C
|
|
|
|
|
|
